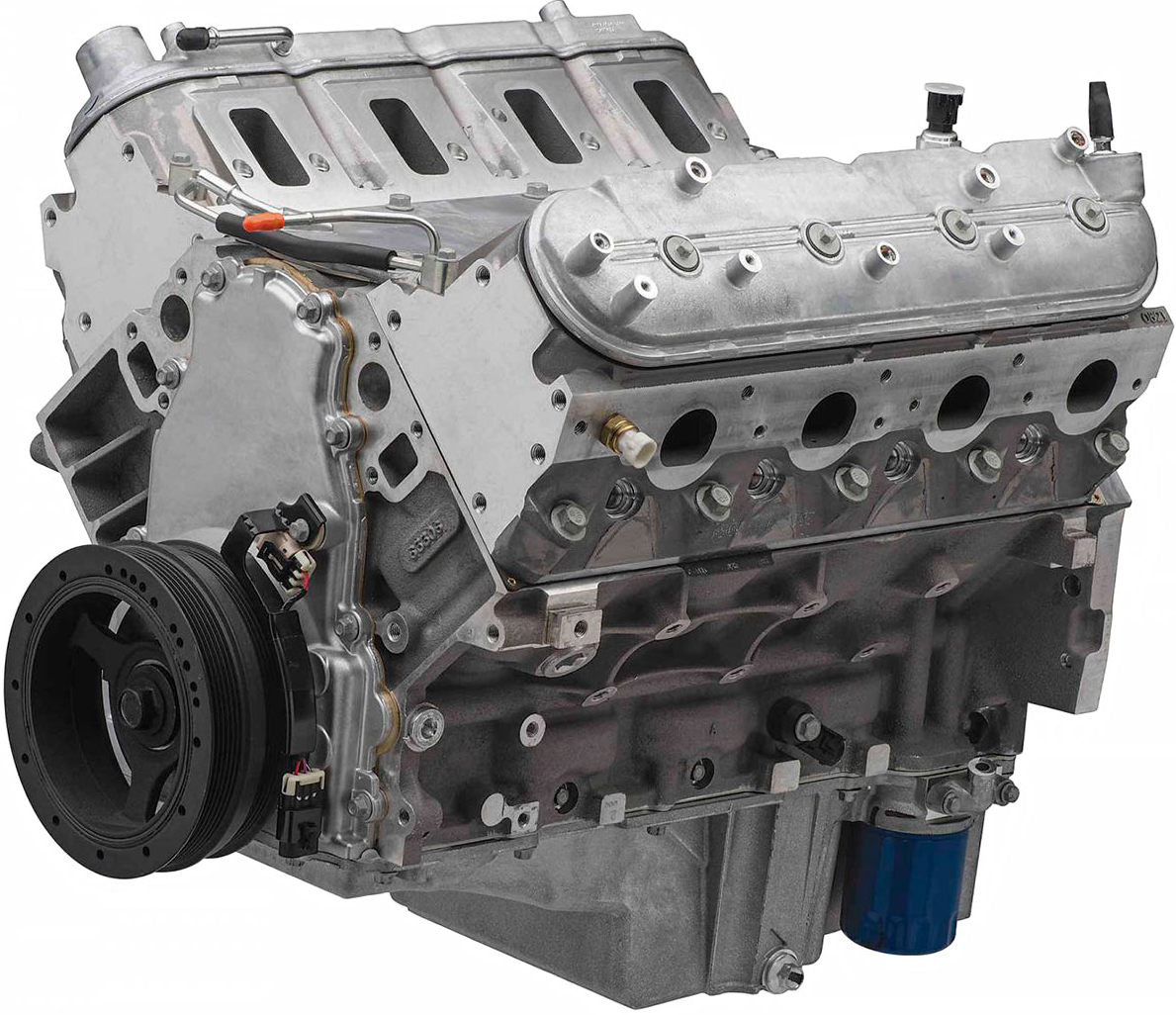

GM 6.2L LS3 Crate Engine 430 Horsepower, 424 ft. lbs. Torque
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Free Delivery

    For selected products

GM 6.2L LS3 Crate Engine 430 Horsepower, 424 ft. lbs. Torque

GSQ3694
In stock
$28,507.97
  Starting with the '08 Corvette, the world was first introduced to GM's latest small block...
$28,507.97

customers are viewing this product
GM 6.2L LS3 Crate Engine 430 Horsepower, 424 ft. lbs. Torque



Starting with the '08 Corvette, the world was first introduced to GM's latest small block V8 creation the 6.2-liter LS3. A continuation of the industry leading V8 engines from GM Powertrain, the LS3 kicks out 430 horsepower and 424 lb.-ft. of torque. (In the Corvette, those numbers go to 436 hp and 428 lb.-ft. of torque with the optional dual mode exhaust system.) It's a brute of a small block with 376 ready cubes at your beckon call. The LS series of engines from GM Powertrain have broken new ground for efficiency and performance from a pushrod platform engine. The LS3 continues the engineering breakthroughs with revised cylinder heads featuring rectangle ports borrowed from the vaunted LS7. The heads feature 63 cc combustion chambers, 2.16-inch intake valves, and 1.59-inch exhaust valves. The camshaft features an aggressive .551-inches of lift on the intake side with less overlap (than the LS2) for even greater airflow and power. Rocker arms with a 1.7:1 ratio sit on top of the heads. In the bottom end, the aluminium 6-bolts/main block features 4.06-inch bores and 3.62-inch stroke. A nodular iron crankshaft, powdered metal rods, and aluminium pistons (10.7:1 compression ratio) round out a rev-happy short block. Red line for the LS3 comes at 6600 rpm, and you will get there very quickly. With a high-tech GM foundation, aluminium block, and high flowing rectangular-port heads, the LS3 is the new standard in the small block world. The LS3 helps power the new Corvette to a top speed of 190 mph. What will it power you to?

Specifications:
Power: 430 HP @ 5900 RPM, 424 ft. lbs. of torque @ 4600 RPM
Displacement: 376 CID, 6.2L
Bore x Stroke: 4.060" x 3.620"
Compression Ratio: 10.7:1
Recommended Fuel: 92 Octane
Block: Cast Aluminium with 6 bolt cross bolted main caps
Crankshaft: Nodular Iron
Connecting Rods: Powdered Metal Steel
Pistons: Hypereutectic Aluminium
Camshaft: Steel Hydraulic Roller Tappet
Cam Lift: .551" Intake / .522" exhaust
Cam Duration @ .050": 204 deg. Intake / 211 deg. Exhaust
Lobe Separation: N/A
Cylinder Heads: Aluminium L92/LS3 style ports
Combustion Chamber: 68cc
Valves: 2.165" Intake/ 1.590" Exhaust
Rocker Arms: Cast Roller Trunnion, 1.7:1 Ratio
Balance: Internal
Reluctor: 58X
Maximum GM Recommended RPM: 6600
GM Recommended Torque Converter Stall 2400-2800

Engine Includes:
- Fully GM assembled long block
- Oil pump, pick-up and Camaro oil pan
- Corvette Harmonic Balancer
- Front timing cover with cam sensor
- Oil Filter
- Passenger Side RH Oil Dipstick and Tube (not included)

Note: Does not include oil dipstick tube, oil dipstick, or steam crossover tube.
